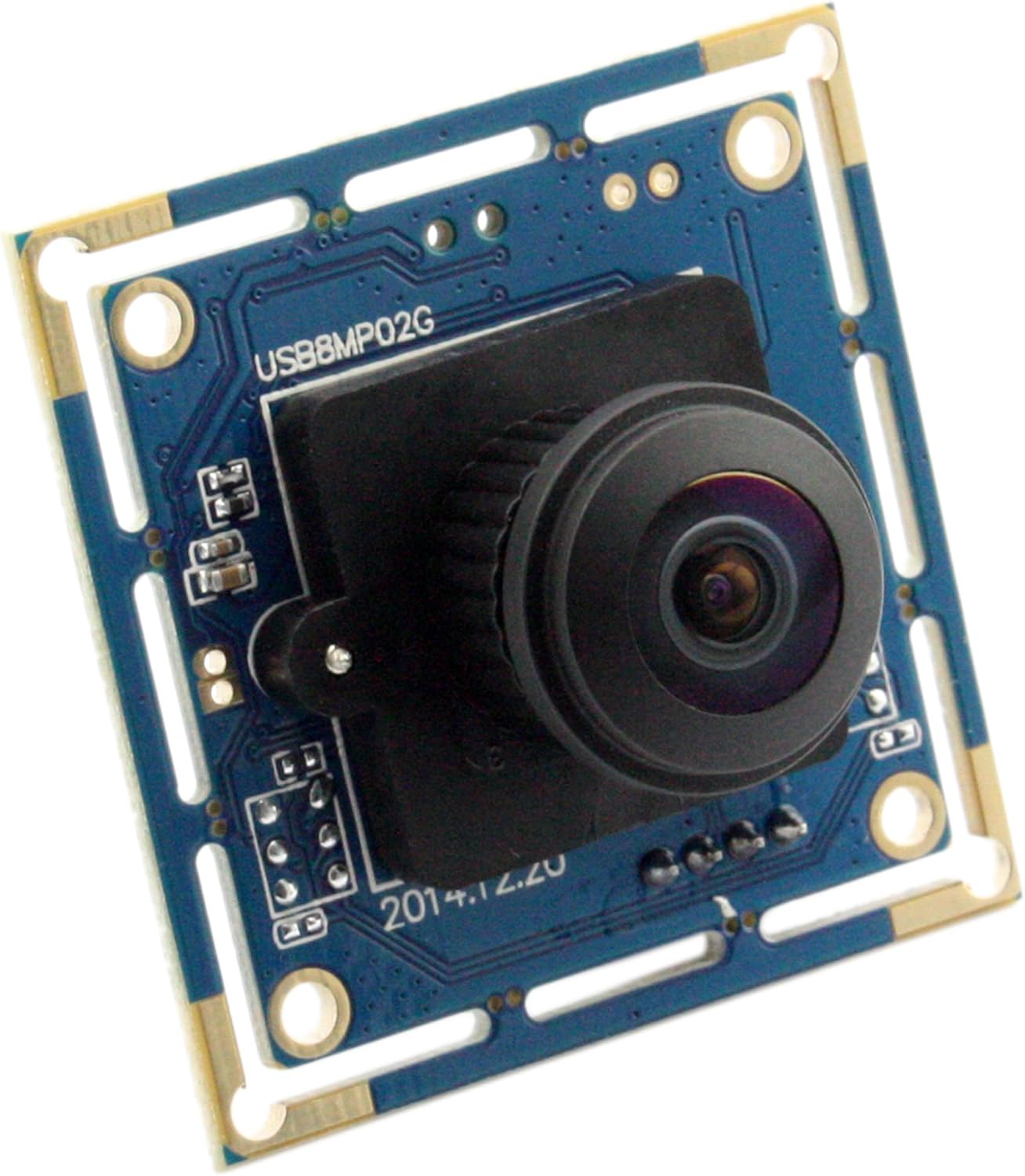

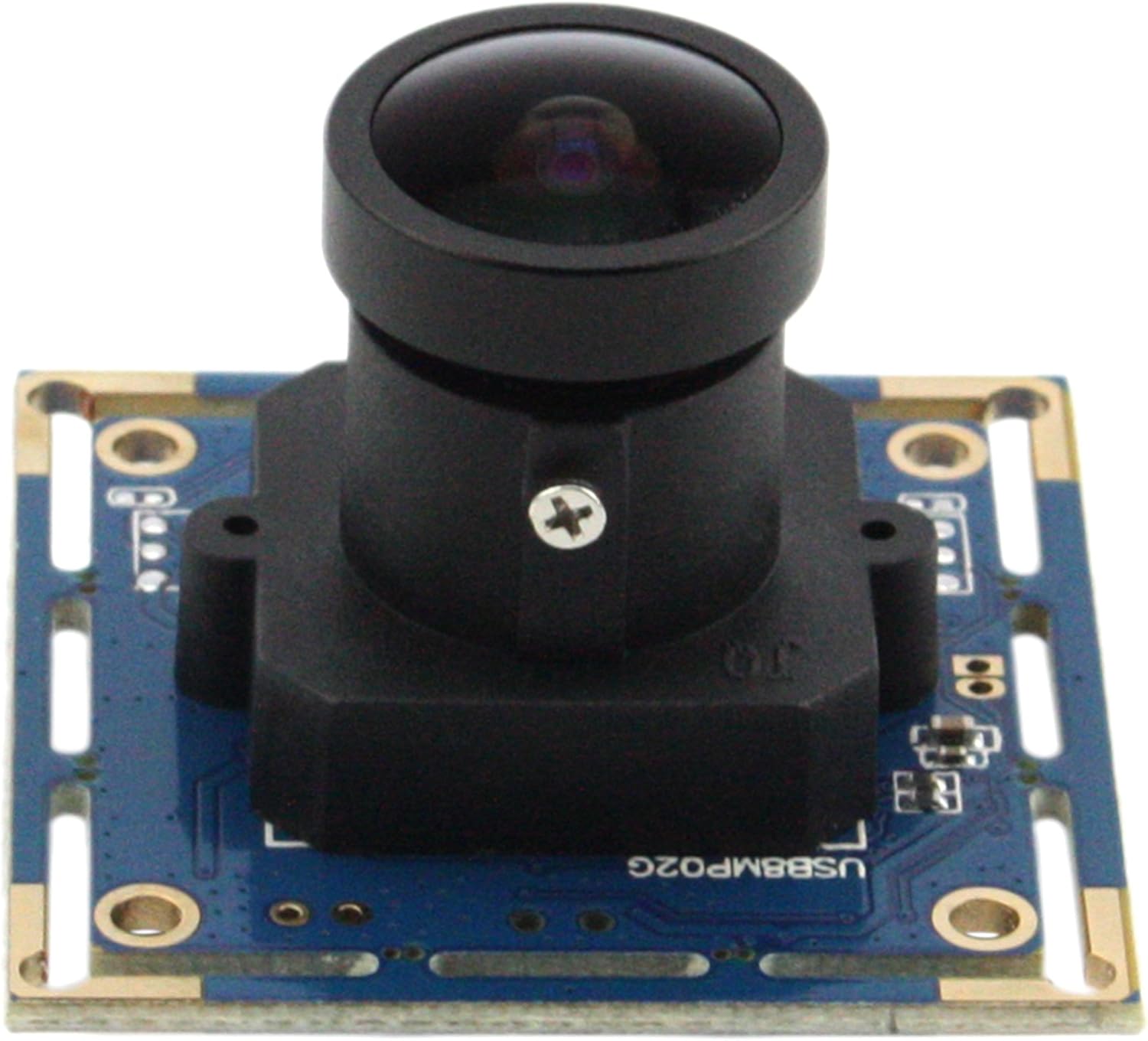

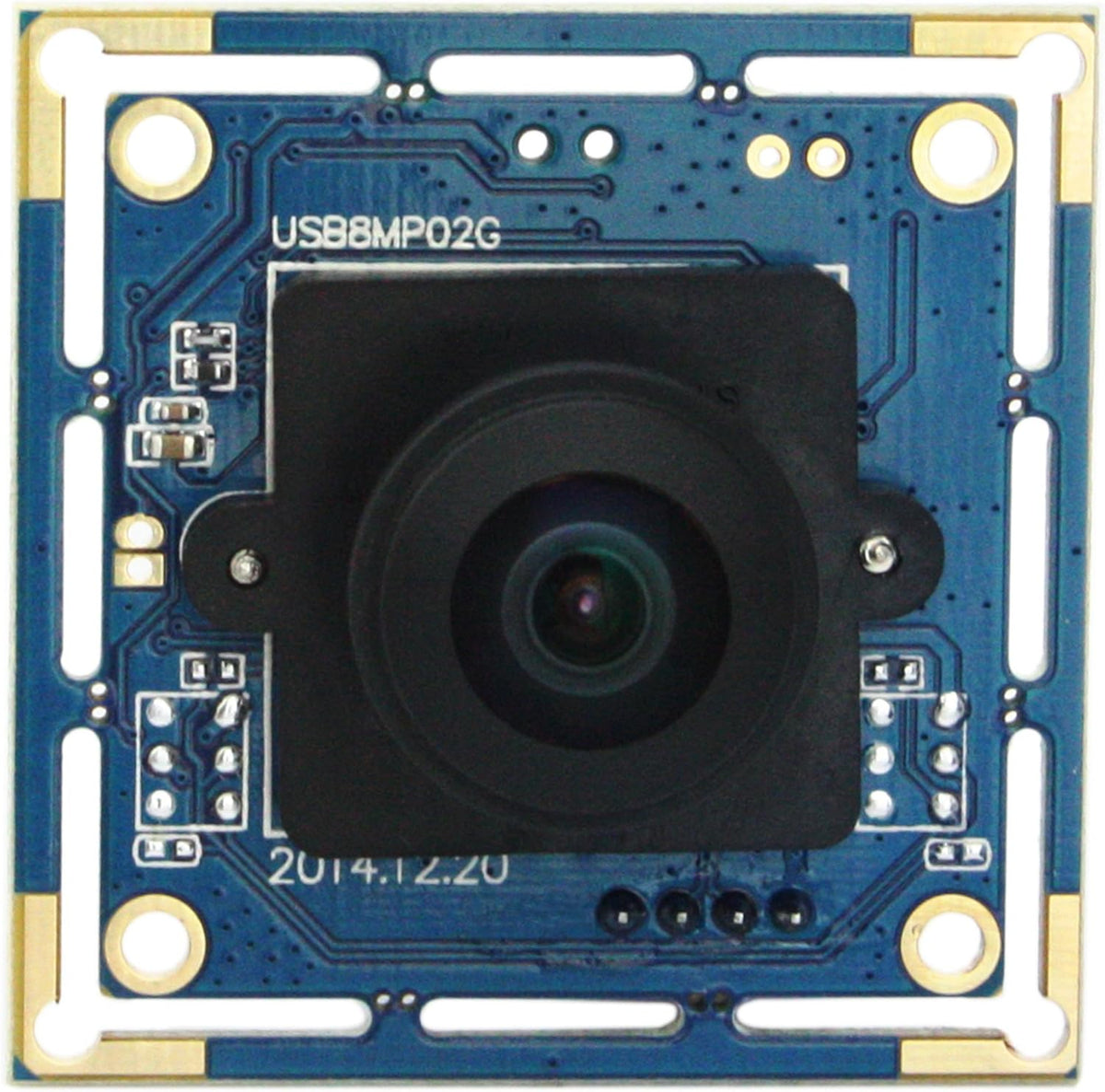

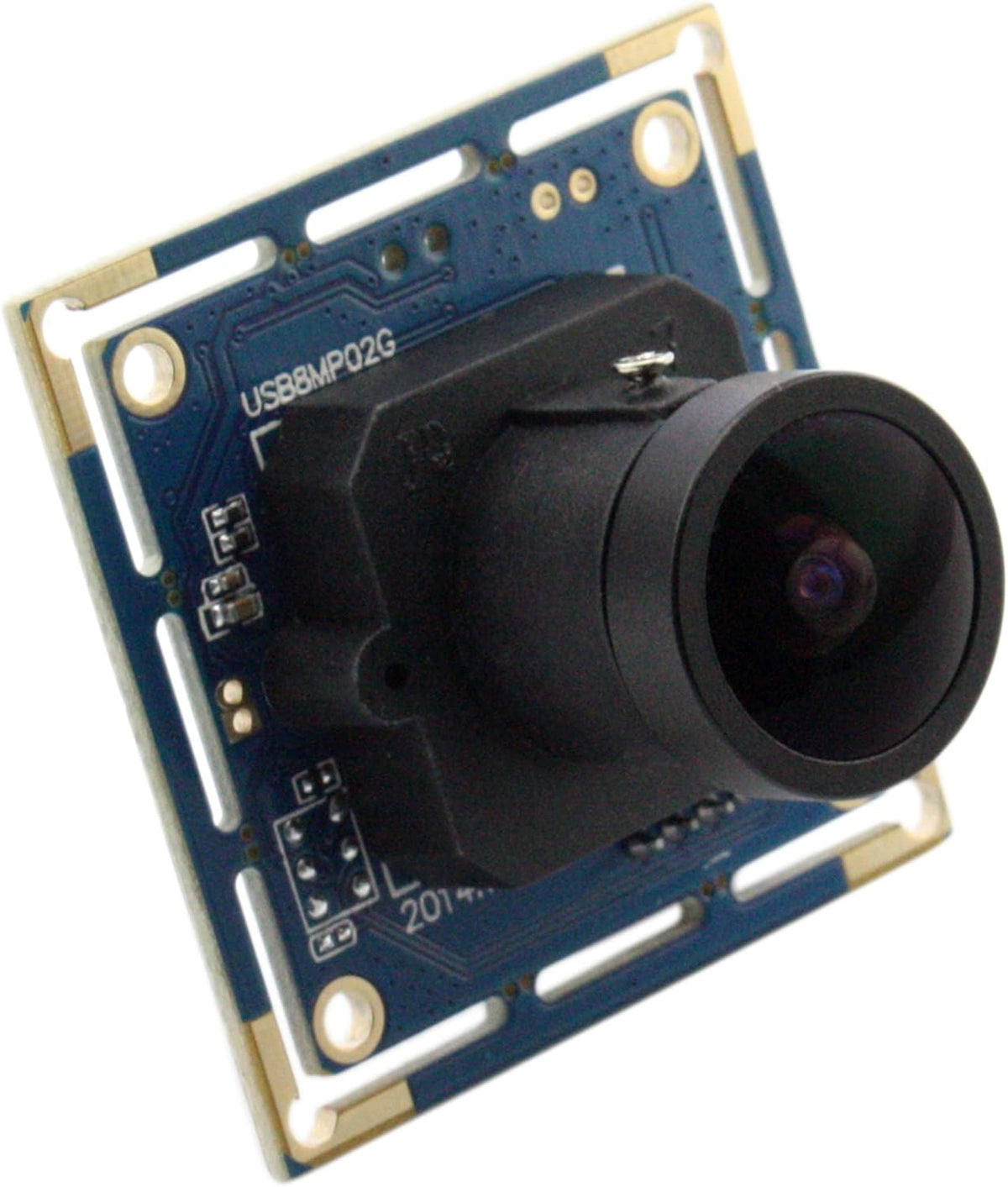

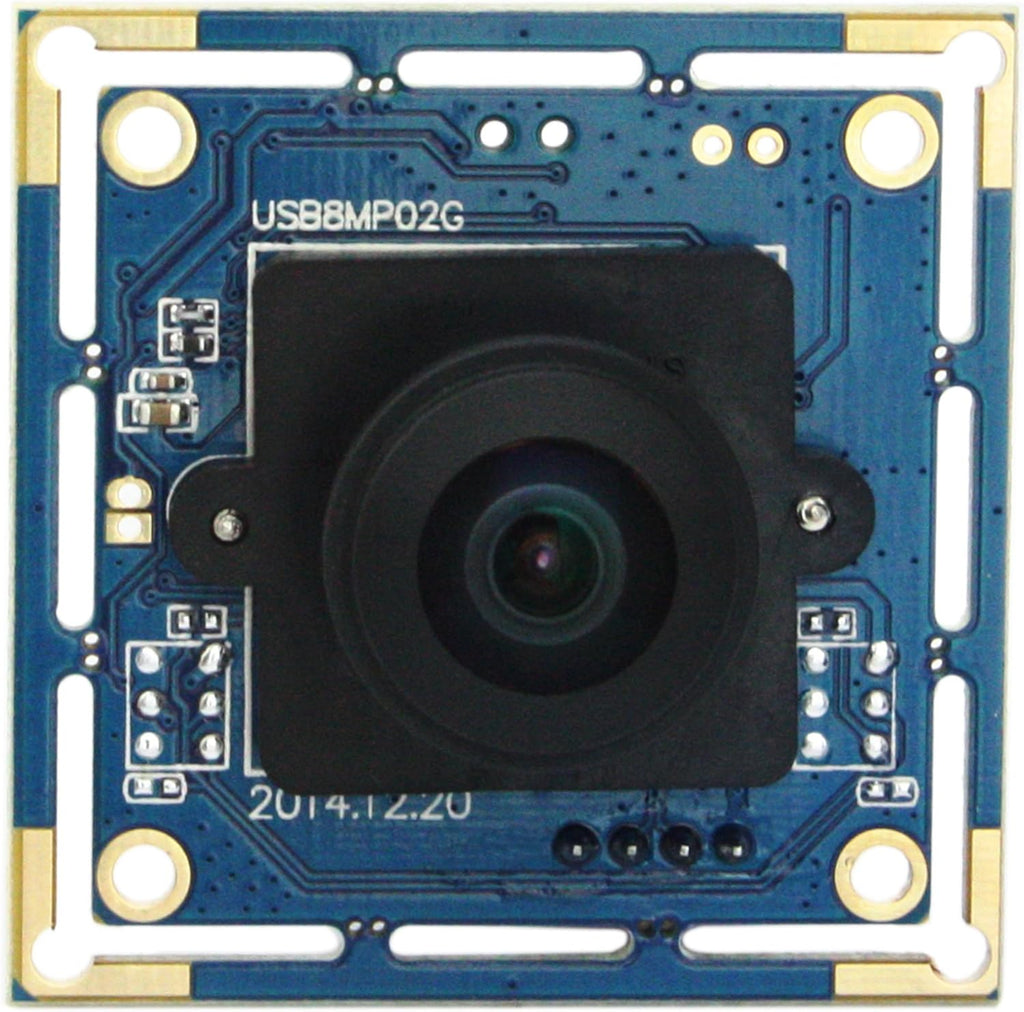

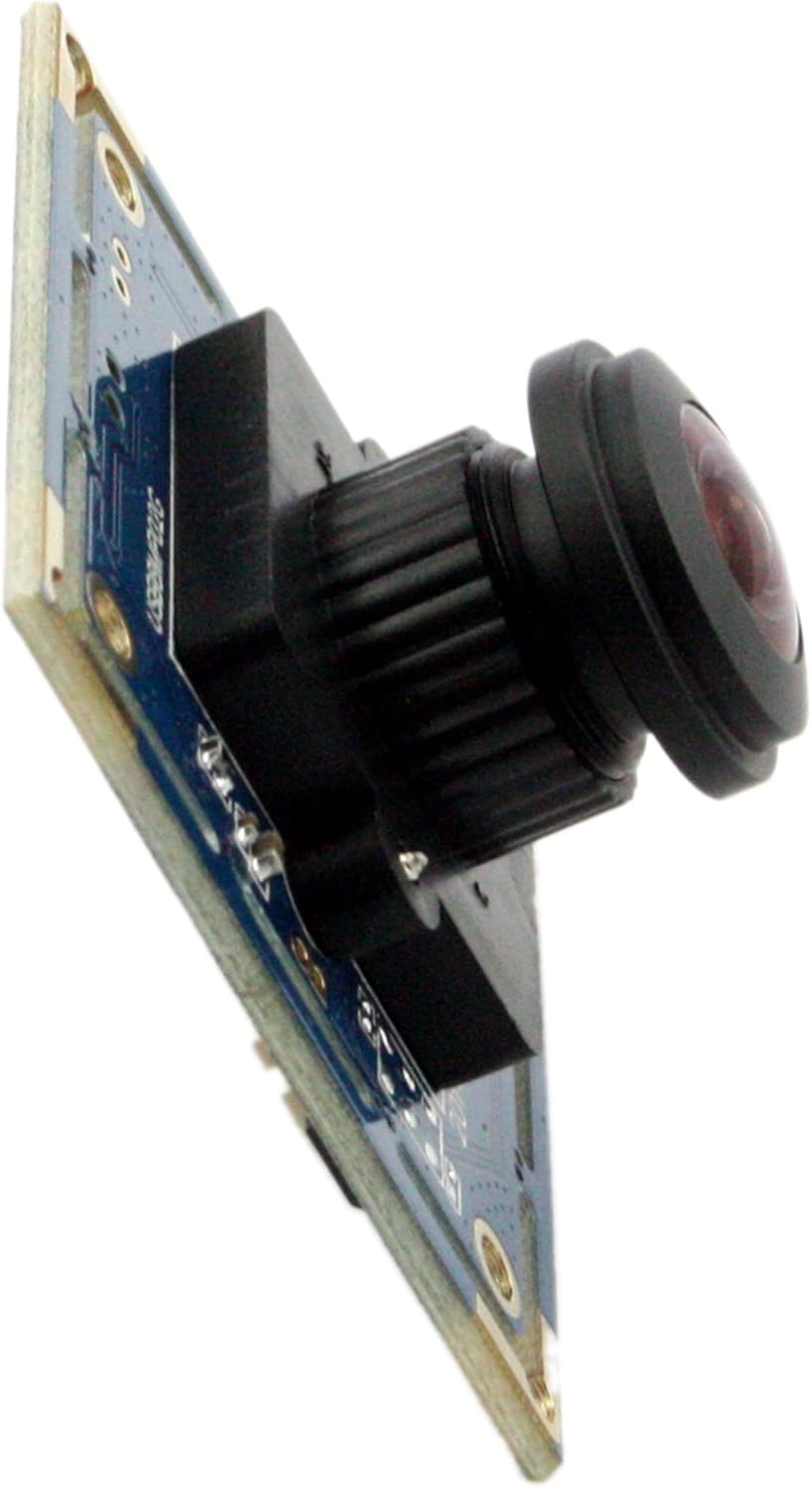

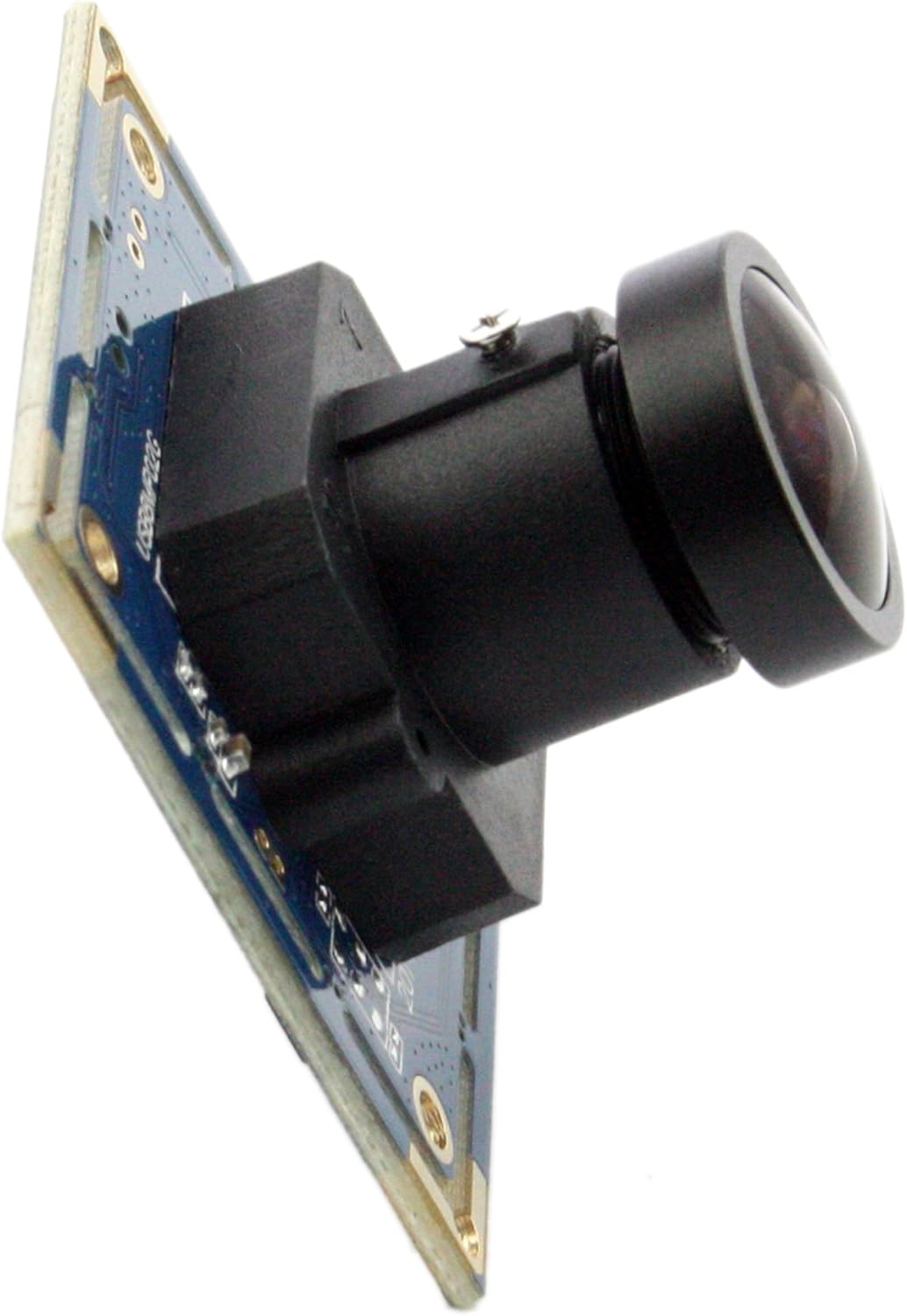

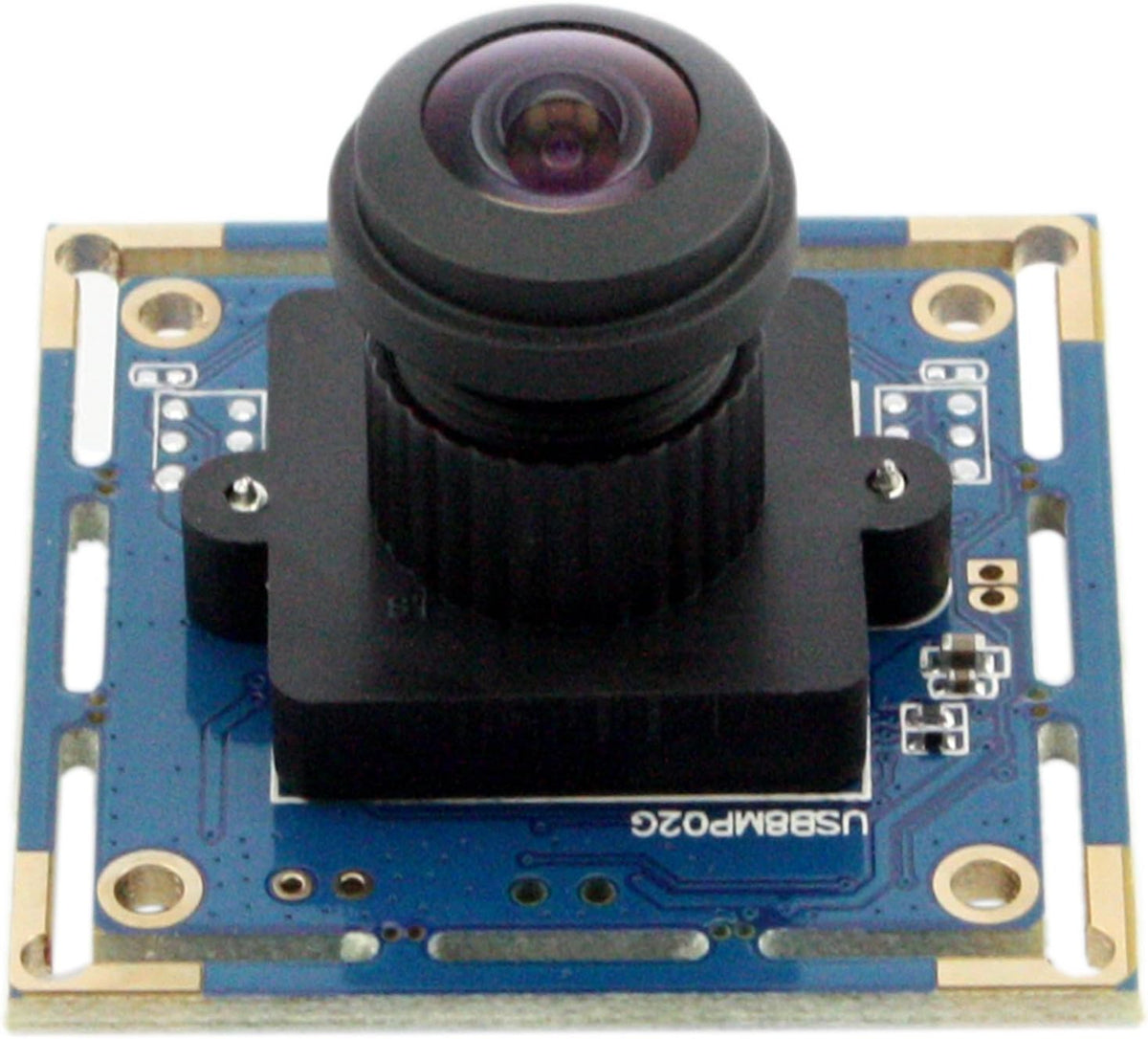

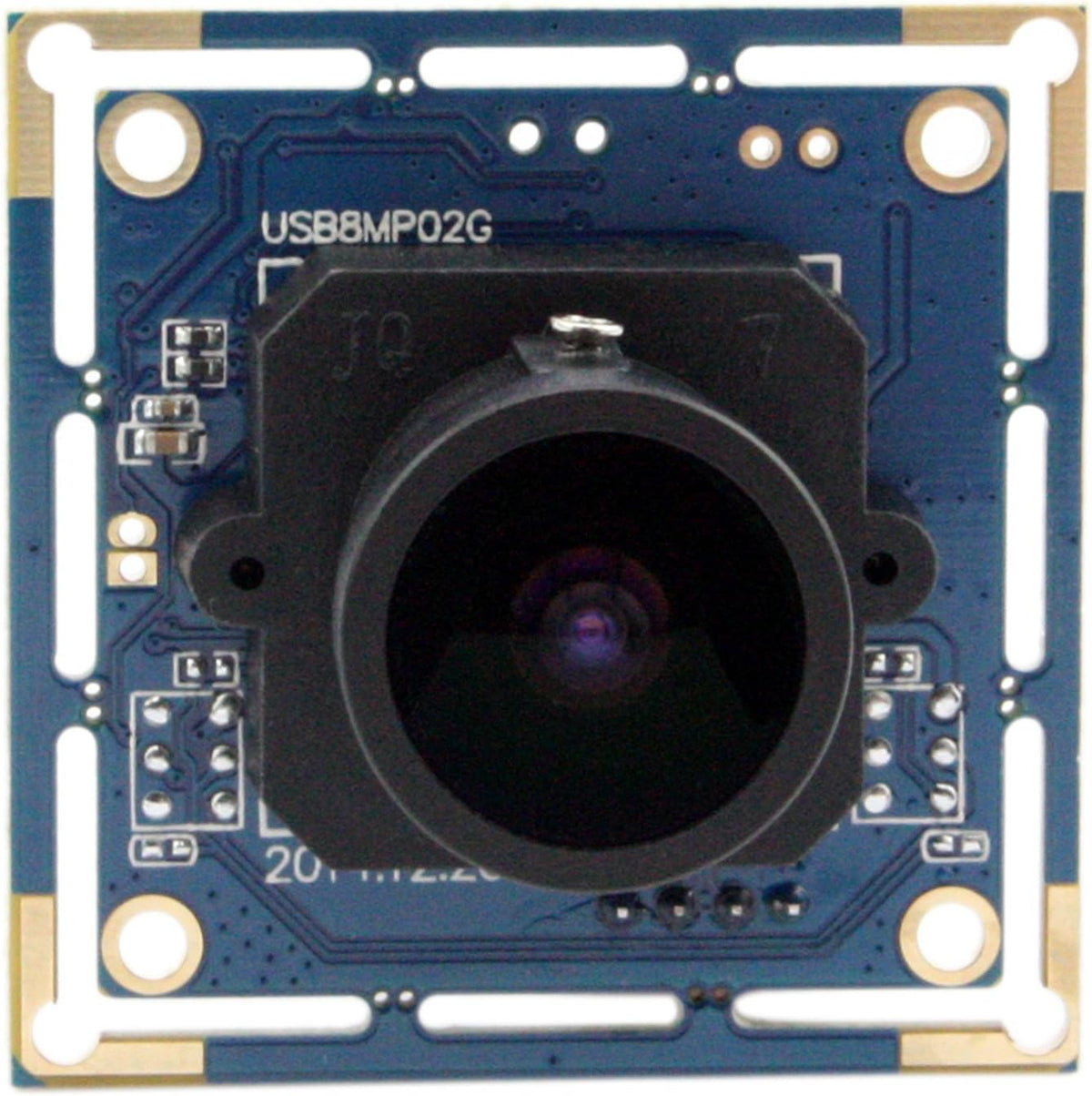

USB Camera Module 8 Megapixel with 180 Fisheye Lens W44387
USB Camera Module 8 Megapixel with 180 Fisheye Lens W44387
180degree fisheye lens with full view image
8megapixel hd high resolution

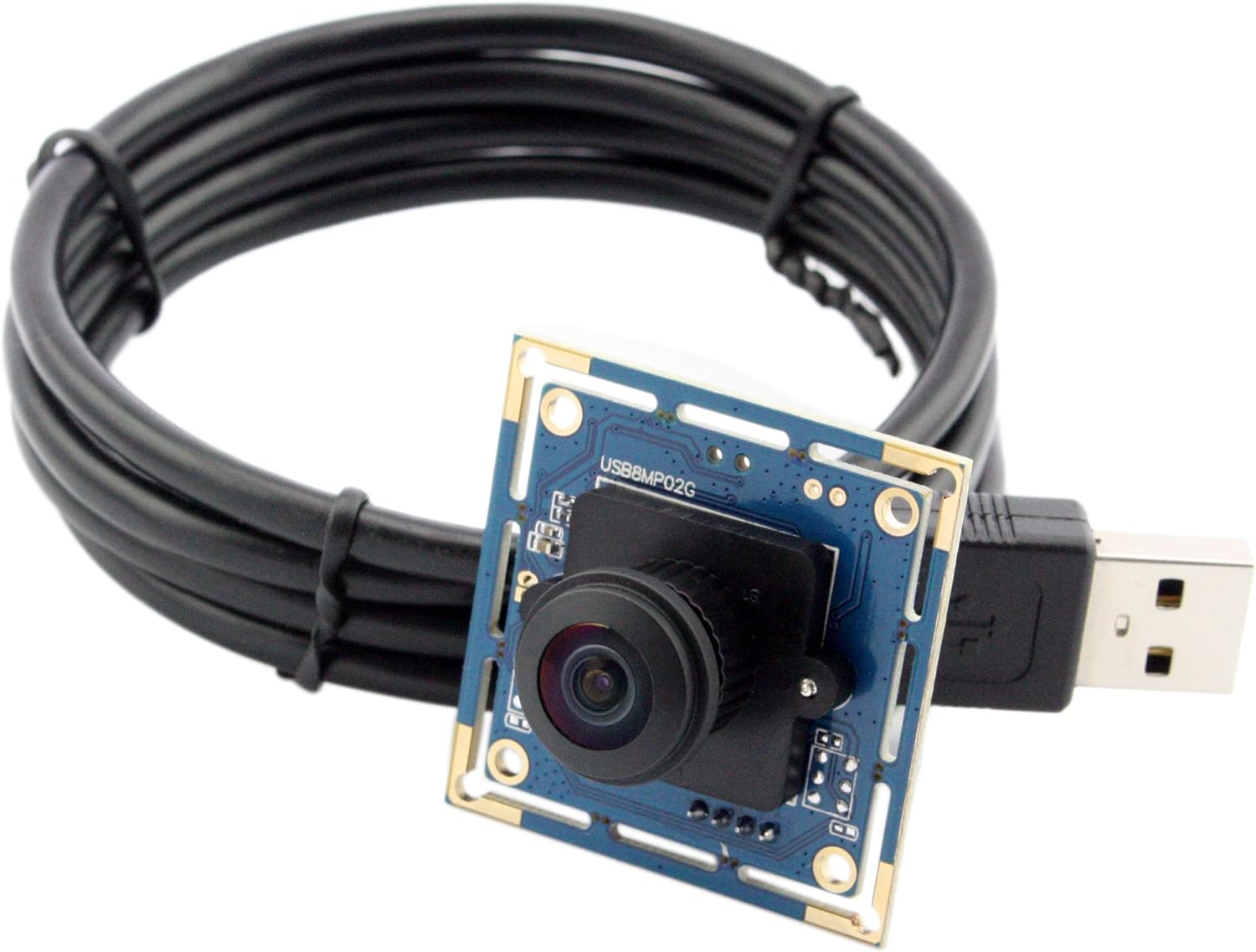

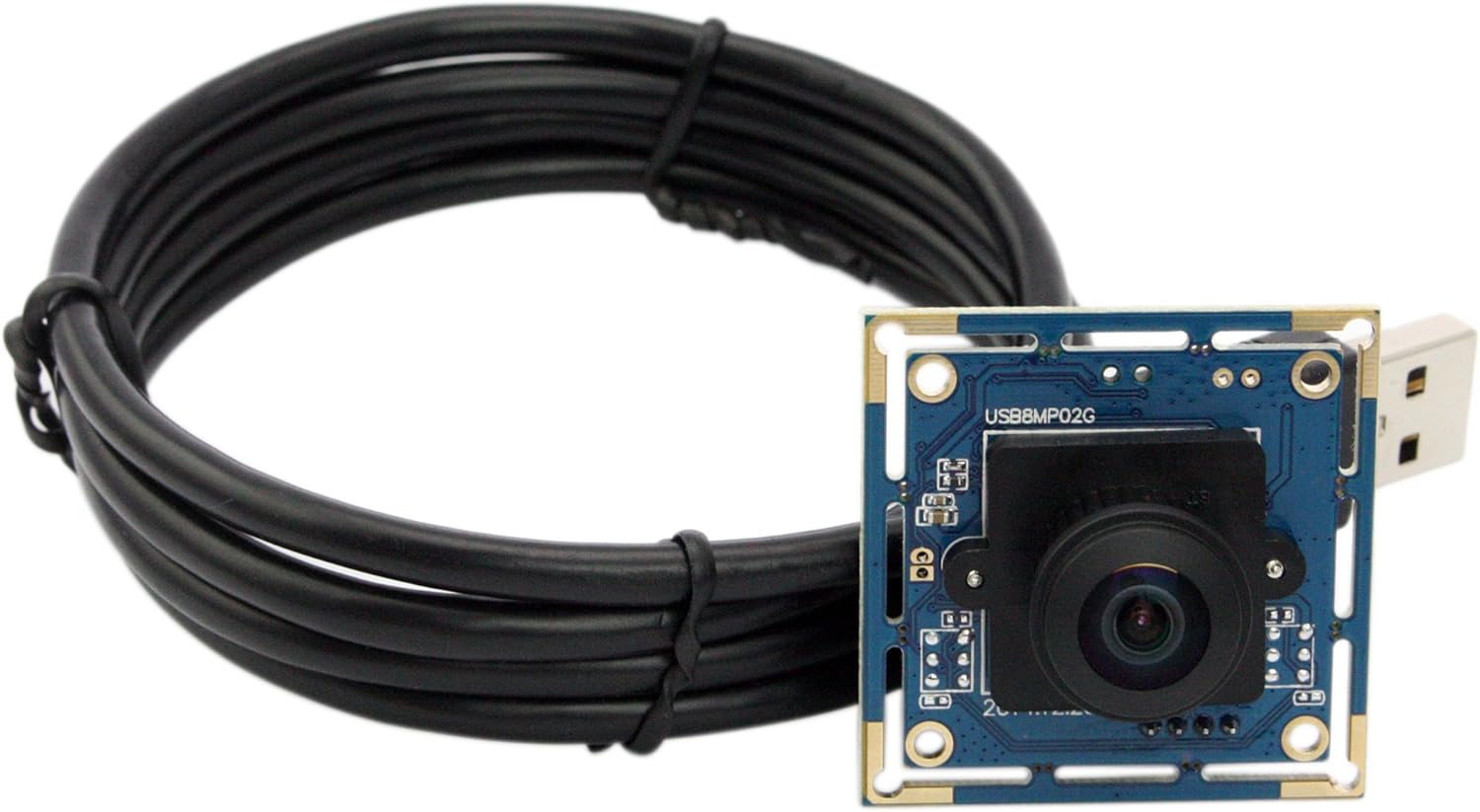

1Meter USB cable equiped
Sony sensor for sharp image
compact camera for all kinds of machine vision
ELP-USB800W02G-L180 is 180degree fisheye lens full image view 8MP HD high resolution USB webcam camera for high end video image.
Specification:
Sensor Sony (1/3.2”) IMX179
Picture format MJPEG/YUY2 /USB Protocal USB2.0 HS/FS
Auto exposure AEC Support/Auto white blance AEB Support
Performance:
3264X2448 MJPEG 15fps YUY2 2fps/3200X2400 MJPEG 30fps YUY2 30fps
2592X1944 MJPEG 15fps YUY2 3fps/2048X1536 MJPEG 20fps YUY2 3fps
1600X1200 MJPEG 20fps YUY2 10fps/1280X960 MJPEG 20fps YUY2 10fps
1024X768 MJPEG 30fps YUY2 10fps/800X600 MJPEG 30fps YUY2 30fps
640X480 MJPEG 30fps YUY2 30fp
Adjustable parameters Brightness/Contrast/Color saturation /Definition/Gamma/WB
Night vision optional, can support IR Cut and IR board for IR night vision.
voltage DC 5V/current 150mA/work temperature DEGREES(-20~70)
Size: 38mm*38mm/32*32mm(other size cutomised) Support OS 'WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later
